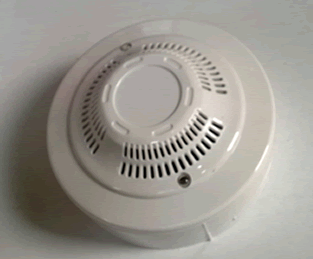

Gas Detector
AH625 Series
Gas Detectors:
AH625 series detectors is effective for detecting any buildup of natural gas and liquefi ed gas, ideal for use in commercial properties can be connected with fire alarm control panel with 2 wire, as a control unit for operation as part of gas detection. The gas alarm should be mounted (for methane gas) or low (for LPG gas) location.
• To detect combustible gas (NG, LPG)
• Sensitivity can be calibrated into either UL2075 or EN50194 standards
• Figaro semiconductor sensor heads with UL approval for gas detection
• Loud 75dB sound signal at alarm mode
• Advanced detection and discrimination algorithms
• Easy installation and maintenance
• Sleek low-profi le housing design
• SMD circuit board design
• Magnet test feature
• Power: 12 to 24V DC
• Five-year limited warranty

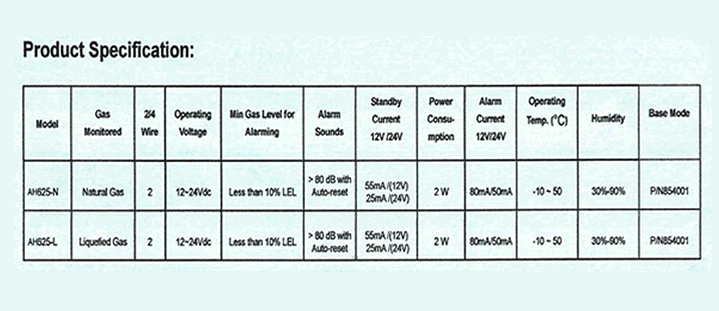

Technical Specification:
Operating Temperature -10°C to +50°C
Ambient Humidity 30%~95% RH
Alarm Horn >75dB with Auto-reset at 3m (10 feet)
Power Consumption 2W
Min Gas Level for Alarming Less than 10% LEL
Dimensions: 98mm (Diameter) x 43 mm (Height)
Weight: 170g with base |
