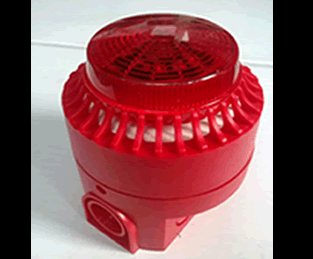

fire alarm sounder and strobe AH - 318-SF
Chloride uk electronic sounder is designed for use with fire alarm systems, security systems and industrial signaling systems.
Combined sounder and beacon provides an audio-visual warning which is suitable for places where high sound output and visual indication is required.
- 32 signal tones selectable by Dip switch.
- High sound output with low current consumption.
- High efficiency lens for maximum light output.
- Volume Control as standard.
- Two sets of IN and OUT terminals, easy for installation
Model |
AH-312-S |
AH-318-SF |
Voltage Range |
24V DC |
Current Consumption
24V DC (tone 3) |
14.5mA |
Sound Output 24V DC
dB (A) at 1 meter |
Max. 114 |
Volume Control |
0 to -20dB adjustment |
Ingress Protection |
IP44 |
Ambient Temperature |
-25¡æ ~ +80¡æ |
Material |
ABS plastic |
Dimensions |
92.5mm(Dia.) x 94mm(H) |
92.5mm(Dia.) x 110mm(H) |
Weight |
254g |
278g |
|
